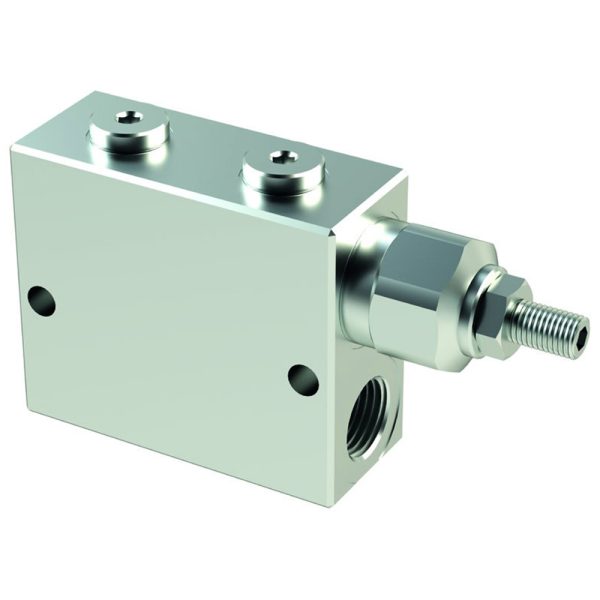

OLEOWEB VRDE Serisi Pilot Uyarılı Valf
| TYPE | A | MAX FLOW l/min-USgpm |
MAX PRESSURE bar-PSI |
B | C | D | E | F | G | H | I | L | APPROX WEIGHT kg-lbt |
PILOT RATIO | ||||||
| VRDE140 | BSPP 1/4 | 15 (4) | 350 (5075) |
30 (1.18) |
40 (1.57) |
63 (2.48) |
12,5 (0.49) |
22,5 (0.89) |
30 (1.18) |
6,5 (0.26) |
33 (1.30) |
108 (4.25) |
0,64 (1.41) | 1:4 | ||||||
| VRDE380 | BSPP 3/8 | 35 (9.2) | 0,60 (1.32) | |||||||||||||||||
| VRDE120 | BSPP 1/2 | 45 (11.9) | 35 (1.38) |
50 (1.97) |
82 (3.23) |
16,5 (0.65) |
31,5 (1.24) |
36 (1.42) |
35 (1.38) |
145 (5.71) |
1,10 (2.42) | |||||||||
| VRDE340 | BSPP 3/4 | 70 (18.5) | 40 (1.57) |
60 (2.36) |
100 (3.94) |
22,5 (0.89) |
46 (1.81) |
50 (1.97) |
8,5 (0.33) |
50 (1.97) |
192 (7.56) |
2 (4.40) | 1:2.9 | |||||||
