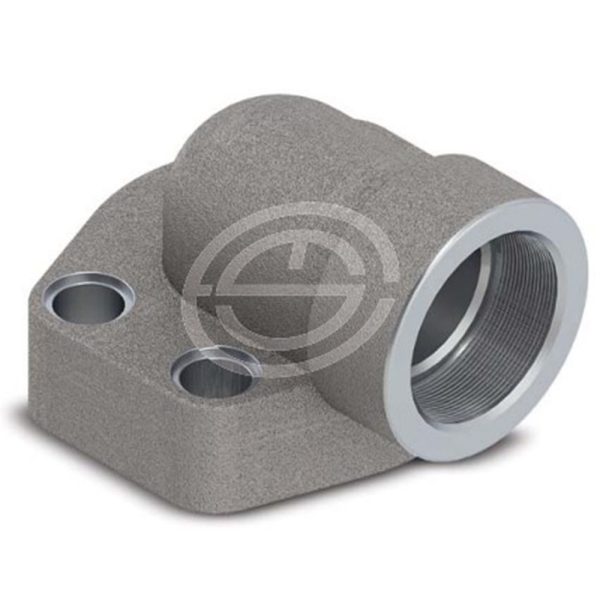

SAED 3000 PSI
| KOD | A | B | C | D | E | F1 | F2 | H | I | L | S1 | S2 | M | O-RING |
| SAED3001 | R 1/2″ | 13 | 38.1 | 54 | 17.48 | 60 | 48 | 16 | 19 | 8.5 | 20 | 37 | M 8×30 | 18.66X3.53 |
| SAED3002 | R 3/4″ | 19 | 47.63 | 65 | 22.23 | 63 | 52 | 18 | 19 | 10.5 | 24 | 38 | M 10×35 | 25X3.53 |
| SAED3003 | R 1″ | 25 | 52.37 | 70 | 26.19 | 70 | 60 | 19 | 20 | 10.5 | 28 | 43 | M 10×35 | 32.92X3.53 |
| SAED3004 | R 1-1/4″ | 32 | 58.72 | 79 | 30.18 | 85 | 73 | 21 | 22 | 10.5 | 34 | 51 | M 10×40 | 37.7X3.53 |
| SAED3005 | R 1-1/2″ | 38 | 69.85 | 93 | 35.71 | 95 | 83 | 25 | 25 | 13 | 38 | 56 | M 12×45 | 47.22X3.53 |
| SAED3006 | R 2″ | 51 | 77.77 | 110 | 42.88 | 110 | 94 | 25 | 28 | 13 | 42 | 65 | M 12×45 | 56.75X3.53 |
SAED 6000 PSI
| KOD | A | B | C | D | E | F1 | F2 | H | I | L | S1 | S2 | M | O-RING |
| SAED6001 | R 1/2″ | 13 | 40.49 | 54 | 18.24 | 60 | 46 | 16 | 19 | 8.5 | 20 | 37 | M 8×30 | 18.66X3.53 |
| SAED6002 | R 3/4″ | 19 | 50.8 | 70 | 23.8 | 70 | 56 | 19 | 20 | 10.5 | 28 | 43 | M 10×35 | 25X3.53 |
| SAED6003 | R 1″ | 25 | 57.15 | 79 | 27.76 | 85 | 72 | 21 | 22 | 13 | 34 | 51 | M 12×45 | 32.92X3.53 |
| SAED6004 | R 1-1/4″ | 32 | 66.68 | 93 | 31.75 | 95 | 75 | 25 | 25 | 15 | 38 | 56 | M 14×50 | 37.7X3.53 |
| SAED6005 | R 1-1/2″ | 38 | 79.38 | 110 | 36.5 | 110 | 94 | 25 | 28 | 17 | 42 | 65 | M 16×50 | 47.22X3.53 |
| SAED6006 | R 2″ | 51 | 96.82 | 134 | 44.5 | 150 | 106 | 26 | 28 | 21 | 60 | 92 | M 20×110 | 56.75X3.53 |
